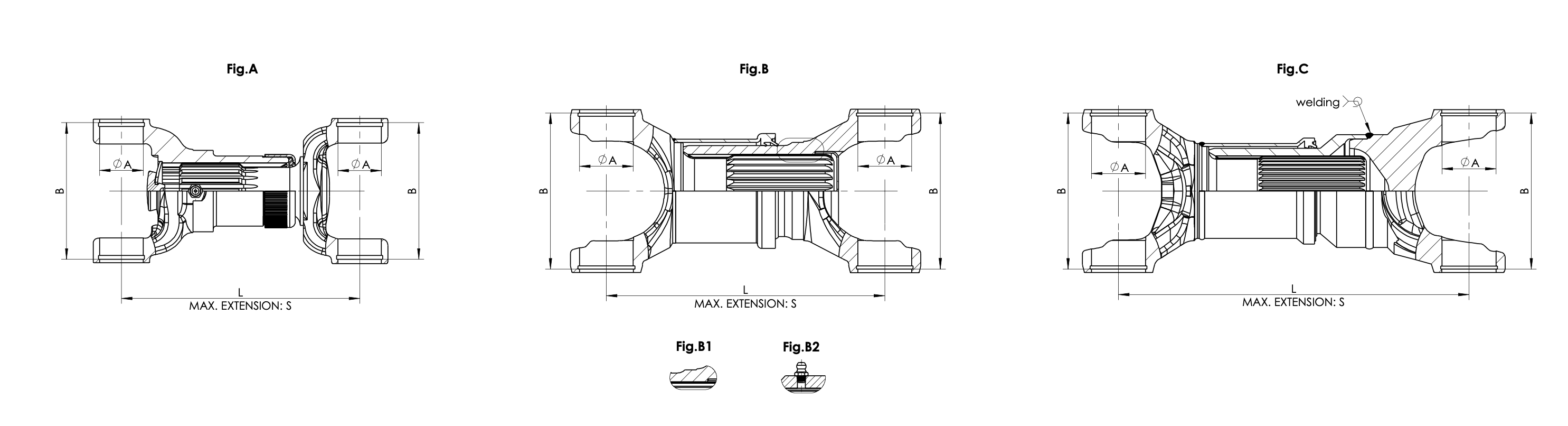

PARÇA NO / PART NO | FIG | ØA | B | L | SPLINE | S | ß° | ISTAVROZ / UJ |
000.5.CM.046.01 | C | 48 | 164,4 | 400 | 72x2,5x27-DIN5480 | 110 | 22 | Ø48,0x161,0 |
000.5.CM.046.02 | C | 48 | 164,4 | 450 | 72x2,5x27-DIN5480 | 110 | 22 | Ø48,0x161,0 |
114.5.CM.015.01 | A | 23,82 | 64,3 | 157 | SAEØ27x16C | 40 | 17 | Ø23,8x61,3 |
114.5.CM.015.02 | A | 23,82 | 64,3 | 177 | SAEØ27x16C | 40 | 17 | Ø23,8x61,3 |
114.5.CM.019.01 | A | 23,82 | 64,3 | 152 | SAEØ27x16C | 25 | 18 | Ø23,8x61,3 |
114.5.CM.019.02 | A | 23,82 | 64,3 | 172 | SAEØ27x16C | 25 | 18 | Ø23,8x61,3 |
114.5.CM.019.03 | A | 23,82 | 64,3 | 136 | SAEØ27x16C | 25 | 18 | Ø23,8x61,3 |
130.5.CM.002.01 | A | 27 | 77,5 | 184 | SAEØ34,9x16C | 50 | 20 | Ø27,0x74,6 |
130.5.CM.020.51 | A | 27 | 77,5 | 157 | SAEØ34,9x16C | 25 | 20 | Ø27,0x74,6 |
131.5.CM.009.51 | A | 27 | 84,7 | 162 | SAEØ34,9x16C | 33 | 22 | Ø27,0x81,8 |
131.5.CM.009.52 | A | 27 | 84,7 | 183 | SAEØ34,9x16C | 32 | 22 | Ø27,0x81,8 |
131.5.CM.009.53 | A | 27 | 84,7 | 222 | SAEØ34,9x16C | 32 | 22 | Ø27,0x81,8 |
131.5.CM.013.51 | A | 27 | 84,7 | 278 | SAEØ34,9x16C | 80 | 44 | Ø27,0x81,8 |
131.5.CM.019.51 | A | 27 | 84,7 | 213 | SAEØ34,9x16C | 55 | 30 | Ø27,0x81,8 |
131.5.CM.019.52 | A | 27 | 84,7 | 225 | SAEØ34,9x16C | 55 | 30 | Ø27,0x81,8 |
131.5.CM.020.51 | A | 27 | 84,7 | 154 | SAEØ34,9x16C | 25 | 20 | Ø27,0x81,8 |
131.5.CM.021.51 | A | 27 | 84,7 | 185 | SAEØ34,9x16C | 35 | 22 | Ø27,0x81,8 |
131.5.CM.022.51 | A | 27 | 84,7 | 202 | SAEØ34,9x16C | 55 | 22 | Ø27,0x81,8 |
131.5.CM.022.52 | A | 27 | 84,7 | 232 | SAEØ34,9x16C | 55 | 22 | Ø27,0x81,8 |
131.5.CM.022.53 | A | 27 | 84,7 | 219 | SAEØ34,9x16C | 55 | 22 | Ø27,0x81,8 |
131.5.CM.023.51 | A | 27 | 84,7 | 185 | SAEØ38,1x16C | 48 | 22 | Ø27,0x81,8 |
131.5.CM.024.51 | A | 27 | 84,7 | 215 | SAEØ34,9x16C | 60 | 20 | Ø27,0x81,8 |
131.5.CM.026.51 | A | 27 | 84,7 | 190 | SAEØ34,9x16C | 55 | 22 | Ø27,0x81,8 |
131.5.CM.026.52 | A | 27 | 84,7 | 222 | SAEØ34,9x16C | 55 | 22 | Ø27,0x81,8 |
131.5.CM.027.52 | A | 27 | 84,7 | 148 | SAEØ34,9x16C | 30 | 20 | Ø27,0x81,8 |
131.5.CM.030.51 | A | 27 | 84,7 | 155 | SAEØ34,9x16C | 30 | 22 | Ø27,0x81,8 |
131.5.CM.034.51 | A | 27 | 84,7 | 280 | SAEØ34,9x16C | 80 | 30 | Ø27,0x81,8 |
135.5.CM.005.51 | A | 30,2 | 95 | 220 | SAEØ38,1x16C | 55 | 25 | Ø30,2x92,0 |
141.5.CM.003.51 | A | 30,2 | 109,2 | 185 | SAEØ38,1x16C | 25 | 25 | Ø30,2x106,3 |
141.5.CM.003.52 | A | 30,2 | 109,2 | 250 | SAEØ38,1x16C | 25 | 25 | Ø30,2x106,3 |
141.5.CM.013.51 | A | 30,2 | 109,2 | 222 | SAEØ38,1x16C | 55 | 25 | Ø30,2x106,3 |
141.5.CM.013.52 | A | 30,2 | 109,2 | 212 | SAEØ38,1x16C | 55 | 25 | Ø30,2x106,3 |
141.5.CM.013.53 | A | 30,2 | 109,2 | 200 | SAEØ38,1x16C | 55 | 25 | Ø30,2x106,3 |
141.5.CM.014.51 | A | 30,2 | 109,2 | 158 | SAEØ38,1x16C | 25 | 25 | Ø30,2x106,3 |
141.5.CM.014.52 | A | 30,2 | 109,2 | 174 | SAEØ38,1x16C | 25 | 25 | Ø30,2x106,3 |
141.5.CM.015.51 | A | 30,2 | 109,2 | 185 | SAEØ38,1x16C | 36 | 25 | Ø30,2x106,3 |
141.5.CM.017.51 | A | 30,2 | 109,2 | 253 | SAEØ38,1x16C | 85 | 25 | Ø30,2x106,3 |
141.5.CM.022.01 | A | 30,2 | 109,2 | 290 | SAEØ38,1x16C | 70 | 25 | Ø30,2x106,3 |
141.5.CM.023.01 | A | 30,2 | 109,2 | 303 | SAEØ38,1x16C | 70 | 25 | Ø30,2x106,3 |
141.5.CM.025.01 | A | 30,2 | 109,2 | 185 | SAEØ38,1x16C | 45 | 25 | Ø30,2x106,3 |
141.5.CM.026.01 | A | 30,2 | 109,2 | 228 | SAEØ38,1x16C | 75 | 30 | Ø30,2x106,3 |
148.5.CM.001.51 | A | 35 | 109,2 | 232 | SAEØ44,5x16C | 65 | 22 | Ø34,9x106,3 |
148.5.CM.002.01 | A | 35 | 109,2 | 304,6 | SAEØ44,5x16C | 110 | 22 | Ø34,9x106,3 |
148.5.CM.002.02 | A | 35 | 109,2 | 318 | SAEØ44,5x16C | 110 | 22 | Ø34,9x106,3 |
148.5.CM.003.51 | A | 35 | 109,2 | 232 | SAEØ44,5x16C | 50 | 22 | Ø34,9x106,3 |
148.5.CM.003.52 | A | 35 | 109,2 | 200 | SAEØ44,5x16C | 45 | 22 | Ø34,9x106,3 |
148.5.CM.004.51 | A | 35 | 109,2 | 191 | SAEØ44,5x16C | 45 | 22 | Ø34,9x106,3 |
148.5.CM.005.01 | A | 35 | 109,2 | 260 | SAEØ44,5x16C | 70 | 22 | Ø34,9x106,3 |
148.5.CM.006.01 | A | 35 | 109,2 | 243 | SAEØ44,5x16C | 70 | 22 | Ø34,9x106,3 |
148.5.CM.008.51 | A | 35 | 109,2 | 230 | SAEØ44,5x16C | 50 | 22 | Ø34,9x106,3 |
148.5.CM.008.52 | A | 35 | 109,2 | 216 | SAEØ44,5x16C | 50 | 22 | Ø34,9x106,3 |
148.5.CM.011.51 | A | 35 | 109,2 | 226 | SAEØ44,5x16C | 70 | 22 | Ø34,9x106,3 |
151.5.CM.001.51 | A | 39,7 | 119,4 | 240 | SAEØ44,5x16C | 30 | 25 | Ø39,7x115,8 |
151.5.CM.015.01 | A | 39,7 | 119,4 | 233 | SAEØ44,5x16C | 40 | 25 | Ø39,7x115,8 |
151.5.CM.016.01 | A | 39,7 | 119,4 | 168 | SAEØ44,5x16C | 20 | 25 | Ø39,7x115,8 |
151.5.CM.017.01 | A | 39,7 | 119,4 | 185 | SAEØ44,5x16C | 30 | 25 | Ø39,7x115,8 |
151.5.CM.018.51 | A | 39,7 | 119,4 | 220 | SAEØ44,5x16C | 40 | 25 | Ø39,7x115,8 |
287.5.CM.002.51 | C | 30 | 84,7 | 285 | 38x2x18-DIN5480 | 85 | 35 | Ø30,0x81,8 |
287.5.CM.003.51 | C | 30 | 84,7 | 245 | 38x2x18-DIN5480 | 45 | 26 | Ø30,0x81,8 |
385.5.CM.003.01 | C | 48 | 129,5 | 426 | 65x2,5x24-DIN5480 | 130 | 24 | Ø48,0x126,0 |
385.5.CM.003.02 | C | 48 | 129,5 | 440 | 65x2,5x24-DIN5480 | 130 | 24 | Ø48,0x126,0 |
385.5.CM.006.01 | C | 48 | 129,5 | 365 | 65x2,5x24-DIN5480 | 70 | 24 | Ø48,0x126,0 |
385.5.CM.007.01 | C | 48 | 129,5 | 395 | 65x2,5x24-DIN5480 | 70 | 24 | Ø48,0x126,0 |
389.5.CM.005.01 | C | 53 | 139 | 476 | 72x2,5x27-DIN5480 | 140 | 36 | Ø53,0x135,0 |
389.5.CM.008.01 | C | 53 | 139 | 486 | 72x2,5x27-DIN5480 | 150 | 44 | Ø53,0x135,0 |
389.5.CM.008.02 | C | 53 | 139 | 491 | 72x2,5x27-DIN5480 | 150 | 44 | Ø53,0x135,0 |
389.5.CM.012.51 | C | 53 | 139 | 470 | 72x2,5x27-DIN5480 | 140 | 36 | Ø53,0x135,0 |
420.5.CM.002.51 | C | 30,2 | 84,7 | 238 | 38x2x18-DIN5480 | 80 | 26 | Ø30,2x81,8 |
420.5.CM.003.51 | C | 30,2 | 84,7 | 250,5 | 38x2x18-DIN5480 | 70 | 26 | Ø30,2x81,8 |
420.5.CM.005.51 | C | 30,2 | 84,7 | 312 | 38x2x18-DIN5480 | 80 | 35 | Ø30,2x81,8 |
424.5.CM.006.51 | B2 | 35 | 100,2 | 180 | 45x2,5x16-DIN5480 | 25 | 25 | Ø35,0x96,8 |
424.5.CM.007.51 | B2 | 35 | 100,2 | 205 | 45x2,5x16-DIN5480 | 50 | 25 | Ø35,0x96,8 |
432.5.CM.001.01 | B1 | 42 | 123 | 390 | 55x2,5x20-DIN5480 | 110 | 35 | Ø42,0x119,4 |
432.5.CM.003.01 | B1 | 42 | 123 | 265 | 55x2,5x20-DIN5480 | 60 | 27 | Ø42,0x119,4 |
432.5.CM.004.02 | B1 | 42 | 123 | 294 | 55x2,5x20-DIN5480 | 60 | 27 | Ø42,0x119,4 |
432.5.CM.005.01 | B1 | 42 | 123 | 230 | 55x2,5x20-DIN5480 | 40 | 27 | Ø42,0x119,4 |
432.5.CM.006.01 | B1 | 42 | 123 | 294 | 55x2,5x20-DIN5480 | 80 | 27 | Ø42,0x119,4 |
432.5.CM.006.02 | B1 | 42 | 123 | 330 | 55x2,5x20-DIN5480 | 80 | 27 | Ø42,0x119,4 |
432.5.CM.009.01 | B1 | 42 | 123 | 274 | 55x2,5x20-DIN5480 | 80 | 27 | Ø42,0x119,4 |
432.5.CM.010.01 | B1 | 42 | 123 | 274 | 55x2,5x20-DIN5480 | 70 | 27 | Ø42,0x119,4 |
434.5.CM.003.01 | C | 52 | 137 | 499 | 72x2,5x27-DIN5480 | 150 | 44 | Ø52,0x133,0 |
434.5.CM.003.04 | C | 52 | 137 | 481 | 72x2,5x27-DIN5480 | 140 | 44 | Ø52,0x133,0 |
434.5.CM.003.05 | C | 52 | 137 | 491 | 72x2,5x27-DIN5480 | 140 | 44 | Ø52,0x133,0 |
434.5.CM.007.01 | C | 52 | 137 | 442 | 72x2,5x27-DIN5480 | 130 | 44 | Ø52,0x133,0 |
434.5.CM.009.51 | C | 52 | 137 | 452 | 72x2,5x27-DIN5480 | 120 | 44 | Ø52,0x133,0 |
434.5.CM.009.52 | C | 52 | 137 | 466 | 72x2,5x27-DIN5480 | 130 | 44 | Ø52,0x133,0 |
730.5.CM.001.01 | C | 35 | 109,2 | 304,6 | 48x1,5x30-DIN5480 | 100 | 22 | Ø35,0x106,3 |
730.5.CM.001.02 | C | 35 | 109,2 | 318 | 48x1,5x30-DIN5480 | 100 | 22 | Ø35,0x106,3 |
730.5.CM.001.03 | C | 35 | 109,2 | 304,6 | 48x1,5x30-DIN5480 | 100 | 22 | Ø35,0x106,3 |
730.5.CM.001.04 | C | 35 | 109,2 | 318 | 48x1,5x30-DIN5480 | 100 | 22 | Ø35,0x106,3 |
730.5.CM.005.01 | A | 35 | 109,2 | 260 | SAEØ44,5x16C | 70 | 22 | Ø35,0x106,3 |
730.5.CM.006.01 | A | 35 | 109,2 | 243 | SAEØ44,5x16C | 70 | 22 | Ø35,0x106,3 |
730.5.CM.008.51 | A | 35 | 109,2 | 230 | SAEØ44,5x16C | 50 | 22 | Ø35,0x106,3 |
730.5.CM.011.51 | B2 | 35 | 109,2 | 226 | 45x2,5x16-DIN5480 | 70 | 25 | Ø35,0x106,3 |
730.5.CM.015.51 | C | 35 | 109,2 | 290 | 48x1,5x30-DIN5480 | 80 | 22 | Ø35,0x106,3 |
730.5.CM.015.52 | C | 35 | 109,2 | 290 | 48x1,5x30-DIN5480 | 80 | 22 | Ø35,0x106,3 |
730.5.CM.016.01 | C | 35 | 109,2 | 260 | 48x1,5x30-DIN5480 | 50 | 22 | Ø35,0x106,3 |
735.5.CM.001.01 | C | 57 | 147,9 | 465 | 75x2,5x28-DIN5480 | 110 | 35 | Ø57,0x144,0 |
735.5.CM.001.02 | C | 57 | 147,9 | 440 | 75x2,5x28-DIN5480 | 110 | 35 | Ø57,0x144,0 |
735.5.CM.001.03 | C | 57 | 147,9 | 465 | 75x2,5x28-DIN5480 | 110 | 35 | Ø57,0x144,0 |
735.5.CM.002.01 | C | 57 | 147,9 | 440 | 75x2,5x28-DIN5480 | 110 | 35 | Ø57,0x144,0 |
735.5.CM.002.02 | C | 57 | 147,9 | 440 | 75x2,5x28-DIN5480 | 110 | 35 | Ø57,0x144,0 |
740.5.CM.002.01 | C | 47,6 | 138,3 | 360 | 62x1,75x34-DIN5480 | 110 | 30 | Ø47,6x135,0 |
740.5.CM.004.01 | C | 47,6 | 138,3 | 476 | 62x1,75x34-DIN5480 | 150 | 44 | Ø47,6x135,0 |
740.5.CM.004.02 | C | 47,6 | 138,3 | 436 | 62x1,75x34-DIN5480 | 110 | 44 | Ø47,6x135,0 |
740.5.CM.007.01 | C | 47,6 | 138,3 | 396 | 62x1,75x34-DIN5480 | 80 | 44 | Ø47,6x135,0 |
740.5.CM.009.01 | B1 | 47,6 | 138,3 | 247 | 65x2,5x24-DIN5480 | 65 | 25 | Ø47,6x135,0 |
740.5.CM.012.51 | C | 47,6 | 138,3 | 263 | 65x2,5x24-DIN5480 | 70 | 25 | Ø47,6x135,0 |
740.5.CM.020.01 | C | 47,6 | 138,3 | 411 | 65x2,5x24-DIN5480 | 50 | 30 | Ø47,6x135,0 |
740.5.CM.020.02 | B1 | 47,6 | 138,3 | 300 | 65x2,5x24-DIN5480 | 50 | 25 | Ø47,6x135,0 |
740.5.CM.020.03 | B1 | 47,6 | 138,3 | 287 | 65x2,5x24-DIN5480 | 45 | 25 | Ø47,6x135,0 |
740.5.CM.020.04 | B1 | 47,6 | 138,3 | 311 | 65x2,5x24-DIN5480 | 70 | 25 | Ø47,6x135,0 |
740.5.CM.022.51 | B2 | 47,6 | 138,3 | 315 | 65x2,5x24-DIN5480 | 100 | 25 | Ø47,6x135,0 |
741.5.CM.001.01 | C | 48 | 138,5 | 360 | 62x1,75x34-DIN5480 | 110 | 30 | Ø48,0x135,0 |
741.5.CM.001.02 | C | 48 | 138,5 | 456 | 62x1,75x34-DIN5480 | 110 | 30 | Ø48,0x135,0 |
741.5.CM.001.03 | C | 48 | 138,5 | 382 | 62x1,75x34-DIN5480 | 110 | 30 | Ø48,0x135,0 |
741.5.CM.003.02 | C | 48 | 138,5 | 476 | 62x1,75x34-DIN5480 | 150 | 44 | Ø48,0x135,0 |
741.5.CM.006.01 | C | 48 | 138,5 | 300 | 62x1,75x34-DIN5480 | 50 | 30 | Ø48,0x135,0 |
741.5.CM.007.01 | C | 48 | 138,5 | 311 | 62x1,75x34-DIN5480 | 70 | 30 | Ø48,0x135,0 |
741.5.CM.009.01 | B1 | 48 | 138,5 | 247 | 65x2,5x24-DIN5480 | 45 | 25 | Ø48,0x135,0 |
741.5.CM.020.01 | C | 48 | 138,5 | 411 | 65x2,5x24-DIN5480 | 50 | 30 | Ø48,0x135,0 |
741.5.CM.020.02 | B1 | 48 | 138,5 | 300 | 65x2,5x24-DIN5480 | 50 | 25 | Ø48,0x135,0 |
741.5.CM.020.03 | B1 | 48 | 138,5 | 287 | 65x2,5x24-DIN5480 | 45 | 25 | Ø48,0x135,0 |
741.5.CM.020.04 | B1 | 48 | 138,5 | 311 | 65x2,5x24-DIN5480 | 70 | 25 | Ø48,0x135,0 |
741.5.CM.020.05 | B1 | 48 | 138,5 | 273 | 65x2,5x24-DIN5480 | 70 | 25 | Ø48,0x135,0 |
741.5.CM.020.06 | B1 | 48 | 138,5 | 278 | 65x2,5x24-DIN5480 | 70 | 25 | Ø48,0x135,0 |
741.5.CM.023.01 | B1 | 48 | 138,5 | 247 | 65x2,5x24-DIN5480 | 65 | 25 | Ø48,0x135,0 |
741.5.CM.024.01 | B1 | 48 | 138,5 | 291 | 65x2,5x24-DIN5480 | 70 | 25 | Ø48,0x135,0 |
745.5.CM.001.01 | C | 52 | 151 | 385 | 68x1,75x38-DIN5480 | 80 | 35 | Ø52,0x147,2 |
745.5.CM.002.01 | C | 52 | 151 | 481 | 68x1,75x38-DIN5480 | 160 | 44 | Ø52,0x147,2 |
745.5.CM.002.02 | C | 52 | 151 | 475 | 68x1,75x38-DIN5480 | 160 | 35 | Ø52,0x147,2 |
745.5.CM.002.03 | C | 52 | 151 | 481 | 68x1,75x38-DIN5480 | 160 | 35 | Ø52,0x147,2 |
745.5.CM.005.01 | C | 52 | 151 | 380 | 72x2,5x27-DIN5480 | 80 | 35 | Ø52,0x147,2 |
745.5.CM.005.02 | C | 52 | 151 | 390 | 72x2,5x27-DIN5480 | 90 | 35 | Ø52,0x147,2 |
745.5.CM.006.01 | C | 52 | 151 | 481 | 68x1,75x38-DIN5480 | 160 | 37 | Ø52,0x147,2 |
745.5.CM.006.02 | C | 52 | 151 | 475 | 68x1,75x38-DIN5480 | 160 | 35 | Ø52,0x147,2 |
745.5.CM.006.03 | C | 52 | 151 | 481 | 68x1,75x38-DIN5480 | 160 | 35 | Ø52,0x147,2 |
745.5.CM.019.01 | C | 52 | 151 | 300 | 68x1,75x38-DIN5480 | 60 | 35 | Ø52,0x147,2 |
745.5.CM.020.01 | C | 52 | 151 | 308,5 | 68x1,75x38-DIN5480 | 60 | 35 | Ø52,0x147,2 |
745.5.CM.021.01 | C | 52 | 151 | 350 | 68x1,75x38-DIN5480 | 70 | 35 | Ø52,0x147,2 |
745.5.CM.021.02 | C | 52 | 151 | 345 | 68x1,75x38-DIN5480 | 70 | 35 | Ø52,0x147,2 |
755.5.CM.001.01 | C | 57 | 156 | 418 | 78x2,0x38-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.001.02 | C | 57 | 156 | 376 | 78x2,0x38-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.001.03 | C | 57 | 156 | 396 | 78x2,0x38-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.001.05 | C | 57 | 156 | 445 | 78x2,0x38-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.004.01 | C | 57 | 156 | 411 | 80x2,5x30-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.004.02 | B1 | 57 | 156 | 400 | 80x2,5x30-DIN5480 | 100 | 30 | Ø57,0x152,0 |
755.5.CM.005.01 | B1 | 57 | 156 | 346 | 80x2,5x30-DIN5480 | 80 | 30 | Ø57,0x152,0 |
755.5.CM.009.01 | B1 | 57 | 156 | 286 | 80x2,5x30-DIN5480 | 47 | 30 | Ø57,0x152,0 |
755.5.CM.011.01 | B1 | 57 | 156 | 313 | 80x2,5x30-DIN5480 | 70 | 30 | Ø57,0x152,0 |
755.5.CM.012.01 | B1 | 57 | 156 | 283 | 80x2,5x30-DIN5480 | 50 | 30 | Ø57,0x152,0 |
755.5.CM.013.01 | B1 | 57 | 156 | 324 | 80x2,5x30-DIN5480 | 80 | 30 | Ø57,0x152,0 |
755.5.CM.013.02 | B1 | 57 | 156 | 316 | 80x2,5x30-DIN5480 | 60 | 25 | Ø57,0x152,0 |
755.5.CM.014.01 | B1 | 57 | 156 | 245 | 78x2,0x38-DIN5480 | 30 | 30 | Ø57,0x152,0 |
755.5.CM.016.51 | C | 57 | 156 | 486 | 80x2,5x30-DIN5480 | 160 | 30 | Ø57,0x152,0 |
760.5.CM.001.01 | C | 59 | 171,5 | 450 | 80x2,5x30-DIN5480 | 110 | 30 | Ø59,0x167,7 |
760.5.CM.003.01 | C | 59 | 171,5 | 340 | 80x2,5x30-DIN5480 | 60 | 30 | Ø59,0x167,7 |
760.5.CM.004.01 | C | 59 | 171,5 | 333 | 80x2,5x30-DIN5480 | 50 | 30 | Ø59,0x167,7 |
765.5.CM.001.01 | C | 65 | 177 | 479 | 90x2,5x34-DIN5480 | 80 | 30 | Ø65,0x172,0 |
765.5.CM.001.02 | C | 65 | 177 | 449 | 90x2,5x34-DIN5480 | 110 | 30 | Ø65,0x172,0 |
765.5.CM.003.01 | B1 | 65 | 177 | 364 | 90x2,5x34-DIN5480 | 75 | 18 | Ø65,0x172,0 |
765.5.CM.005.51 | B1 | 65 | 177 | 364 | 90x2,5x34-DIN5480 | 75 | 18 | Ø65,0x172,0 |
765.5.CM.006.51 | C | 65 | 177 | 509 | 90x2,5x34-DIN5480 | 160 | 30 | Ø65,0x172,0 |
765.5.CM.007.51 | B1 | 65 | 177 | 339 | 90x2,5x34-DIN5480 | 70 | 18 | Ø65,0x172,0 |
Copyrights © 2024 All Rights Reserved.
